1.General information about the product

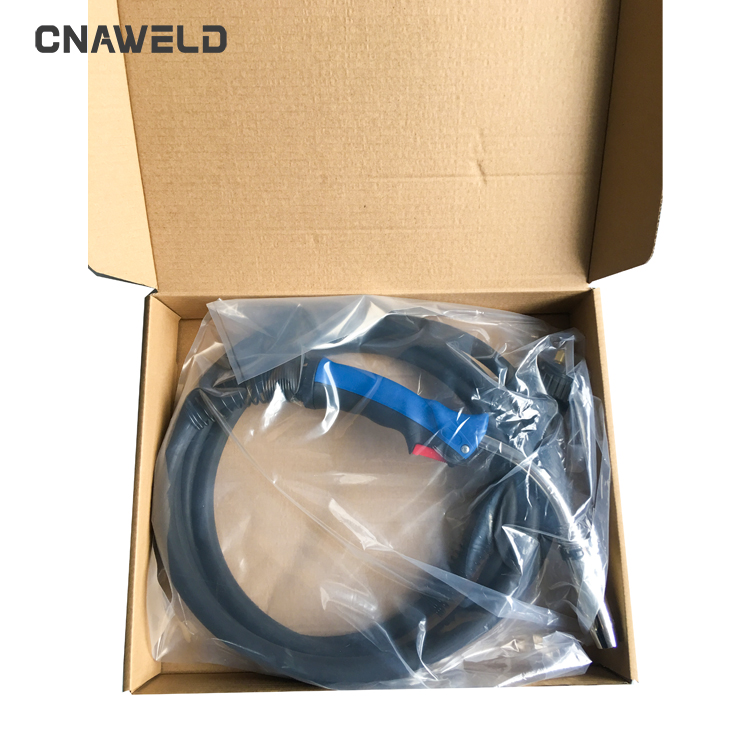

1.1. The  CNAWELD BINZEL TYPE 36 KD air-cooled torch is designed for semi-automatic gas-shielded consumable electrode welding. Can be used instead of torches:

TBi 260, TBi 360 (from TBi Industries);

ERGOPLUS 36 (from Trafimet Spa);

MB 36 KD, MB 24 KD, RF 36 LC, ABIMIG 250 (from ABICOR BINZEL);

BRIMA MIG 360 (BRIMA);

SCM 360 (Svarcom);

DWM-36 MIG (TRANSLAS);

1.2 The welding torch is manufactured by CNAWELD in accordance with the European standard. Cnaweld factory in changzhou city , China

2. Design and principle of operation

2.1 The torch is designed to supply current-carrying electrode wire and shielding gas to the welding zone.

2.2 The burner consists of a head part (gander, handle, replaceable parts and accessories), a coaxial combined cable, a guide channel and a support with a Euro-adapter. The Euroadapter carries out a combined supply of current, electrode wire, shielding gas and control signal.

2.3 During work, it is necessary to monitor the condition of the tip, nozzle and spiral. Clean the tip and nozzle from metal splashes. Replace if worn out. To extend the service life, we recommend the use of non-stick products (spray, paste) from CNAWELD in China
