氩弧焊枪
氩弧焊枪WP-26

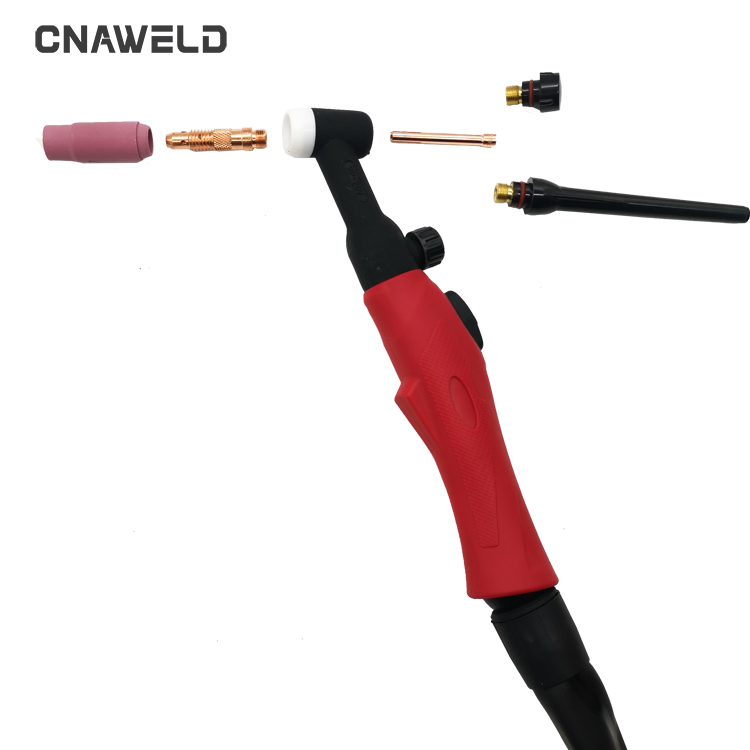

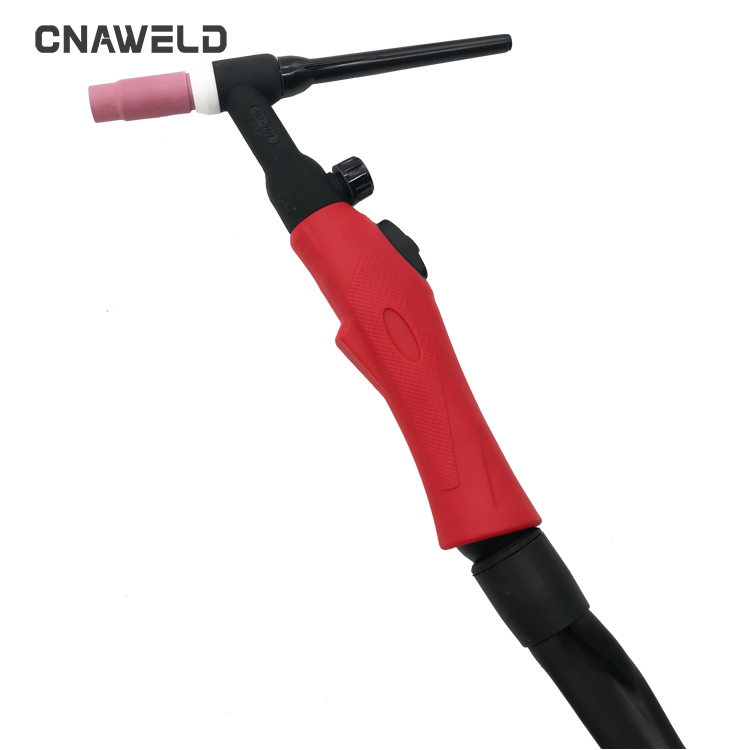

Compact, neat and reliable air-cooled CNAWEDL TIG welding torch; durable branded red and black handle with integrated control button and swivel hose package; reliable and flexible cable; the cable-hose is reliably protected by a wear- and heat-resistant rubber casing.


A distinctive feature: a control button built into the handle: it is more accurate visually, it is convenient to lie in the welder's hand and has a high sensitivity (no need to press on it to operate) and in case of failure, the microswitch can be easily replaced even without the help of a specialist. This torch for argon-arc welding is universal (valve-button): the presence of a valve, as well as an extended gas hose (1.5 m to the length of the main hose package) allows it to be connected to manual arc welding (MMA) machines and to semiautomatic machines with the MMA function ; the presence of a button allows it to be used with devices for argon-arc welding with a button interface.

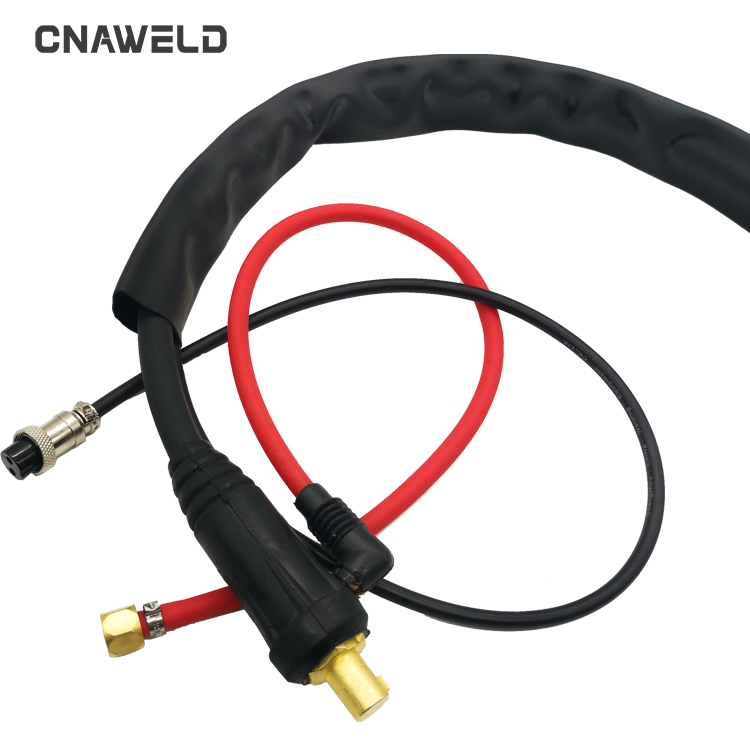

Connection type: bayonet connector 35-50, a separate 1.5 m long gas hose with a M16x1.5 nut for direct connection to a cylinder, a button connection cable with a two-pole female connector.


Benefits:

ergonomics

optimal handling in all welding positions

reducing the stress on the welder's wrist during work

easily replaceable built-in button.

  • Hosepack (sleeve) length - 4 meters

  • Cooling type: air.

  • 35% ED DC: 250 A. 35% ED AC: 160 A

  • Non-consumable electrode diameter: 1-3.2 mm

  • Gas consumption: from 7 to 18 liters per minute.


Rating

250A DC,160A AC

Duty cycle

60%

Wire size

0.5~3.2mm

Length to choose

4M/8M
